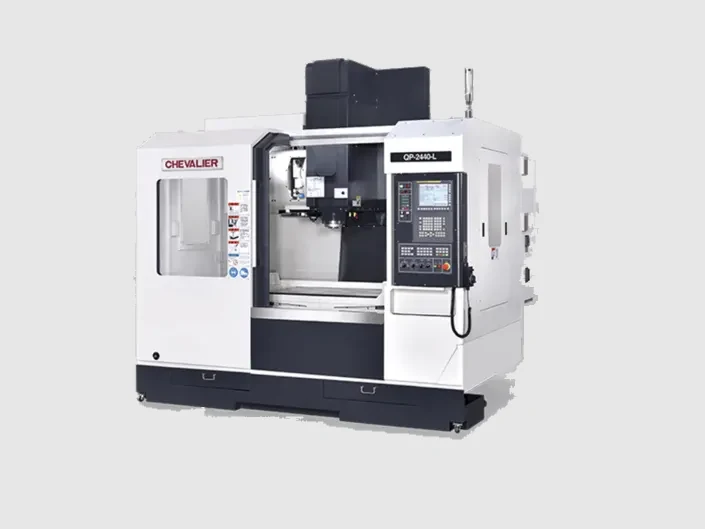

Chevalier
QP2440-L
4-axis vertical machining center
- Working area
- 1,000 × 650 × 350 mm
- Spindle
- 10,000 rpm
- Axes
- X, Y, Z, B
Technology that delivers precision
CNC machines, EDM systems, high-precision grinders - all in one facility, in line with EU standards.
Technology and Equipment
Technology and Equipment
Alat Konjic operates a modern machine park for the complete machining of tools and precision parts - from the first cutting operation to final dimensional inspection, all under one roof.
Lathes and Turning Centers
- —CNC and universal lathes for shaft and flange parts
- —Machining of structural and tool steels, stainless steels and non-ferrous metals
- —Manufacture of punches, guides, bushings and other cylindrical tool elements
- —Fine turning combined with grinding to achieve tight tolerances
Milling and Grinding

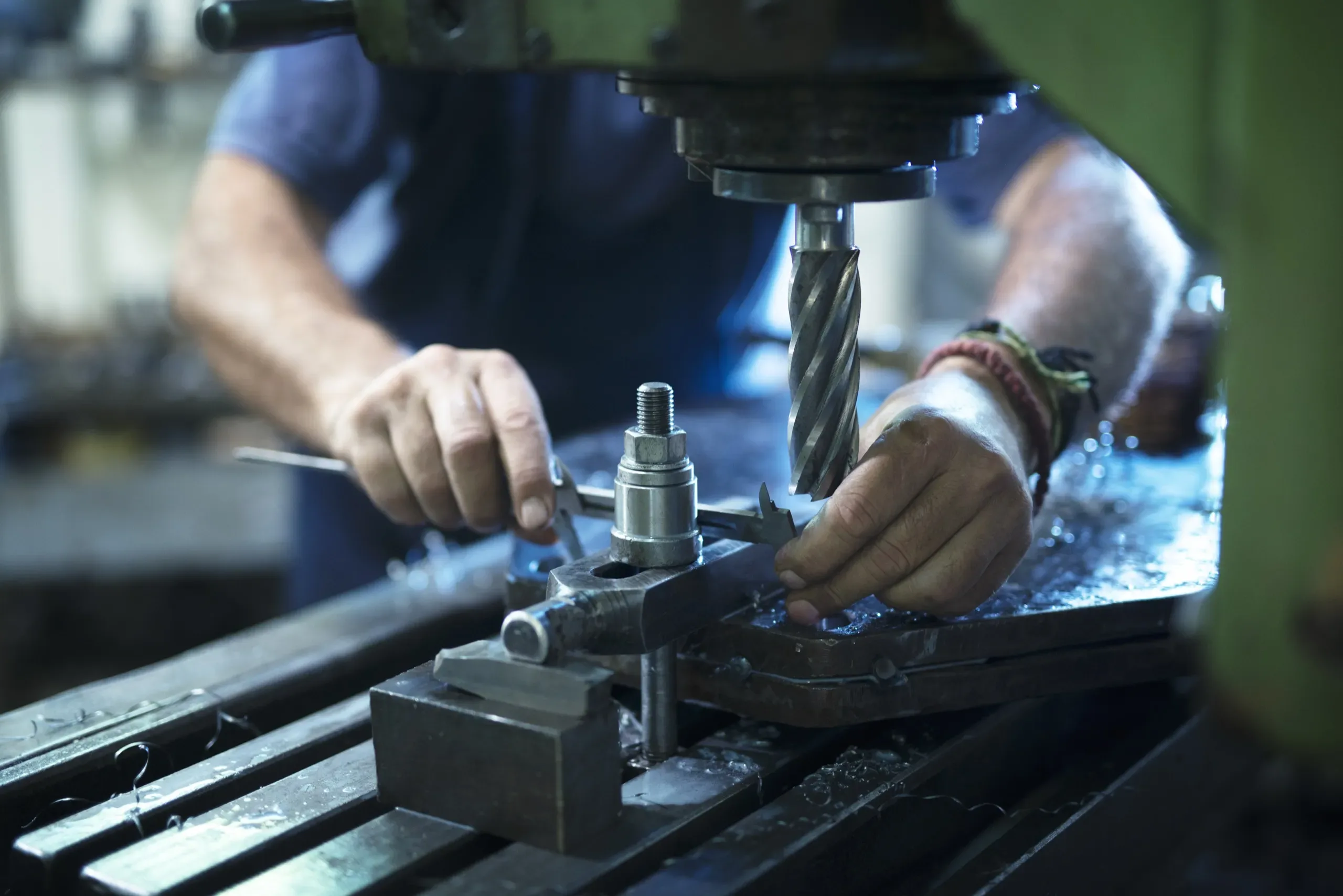

- —CNC and conventional milling machines for plate and profiled parts
- —Surface and cylindrical grinding for finishing guides, plates, punches and other active tool elements
- —Machining of grooves, stepped surfaces and precision fits
Dimensional and Quality Control
- —Dimensional inspection with precision measuring instruments (micrometers, calipers, height gauges, dial indicators)
- —Geometry checks and matching of tool assemblies before delivery or installation at the customer's site
Auxiliary Operations and Rework
- —Preparation of parts for heat treatment in cooperation with partner laboratories
- —Minor welding and repair work on tools and supporting structures
- —Polishing of functional surfaces to customer requirements
Machine park
Some of our machines
A selection of the CNC machining centers and lathes we work with every day - from 5-axis milling to turning with live tooling.
CNC milling
8 machines
DMG MORI
DMU 70
5-axis machining center
- Travel X / Y / Z
- 750 × 600 × 520 mm
- Table
- Ø700 mm · 350 kg
- Spindle
- 18,000 rpm · 29 kW

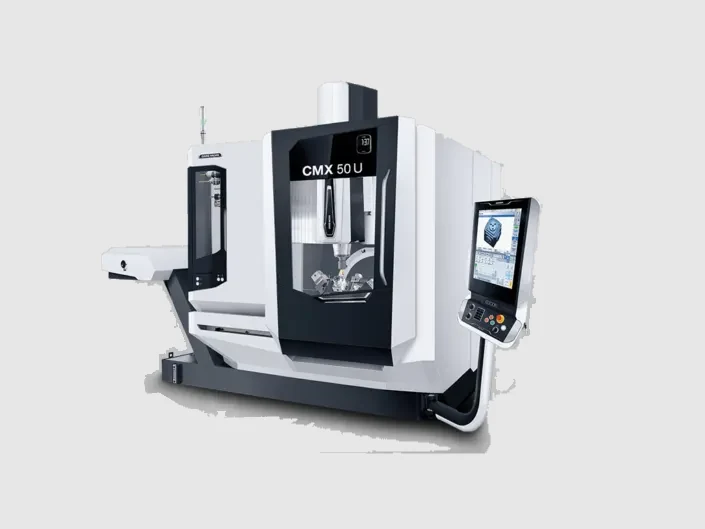

DMG MORI
CMX 50 U
5-axis machining center
- Travel X / Y / Z
- 500 × 450 × 400 mm
- Table
- Ø500 mm · 200 kg
- Spindle
- 12,000 rpm · 13 kW

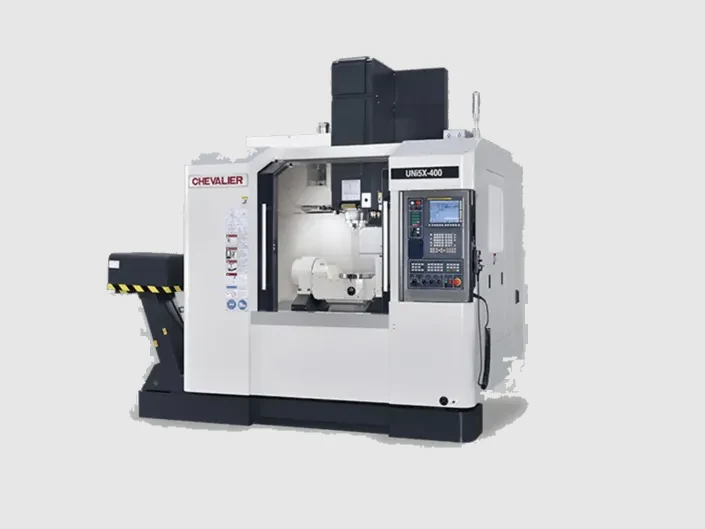

Chevalier
UNi 5X
5-axis machining center
- Travel X / Y / Z
- 500 × 500 × 400 mm
- Table
- Ø350 mm · 150 kg
- Spindle
- 12,000 rpm · 16.5 kW
- Control
- Fanuc 31i-B5

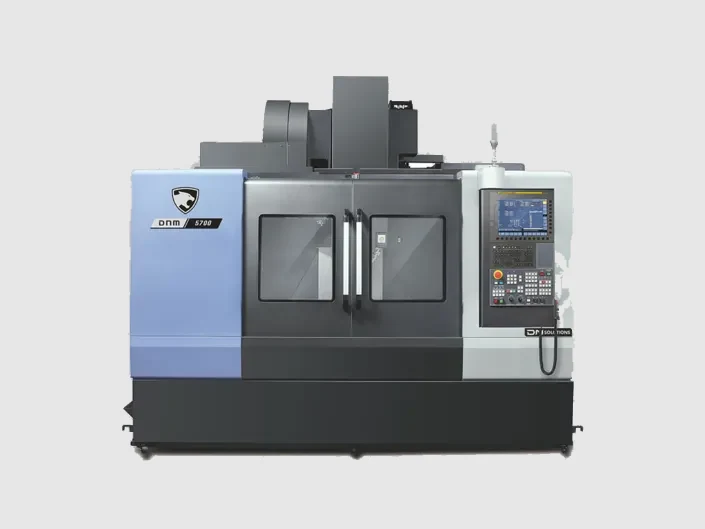

Doosan
DNM 5700
Vertical machining center
- Travel X / Y / Z
- 1,050 × 560 × 510 mm
- Table
- 1,200 × 550 mm · 1,000 kg
- Spindle
- 12,000 rpm · 18.5 kW
- Control
- Fanuc 0i-MF

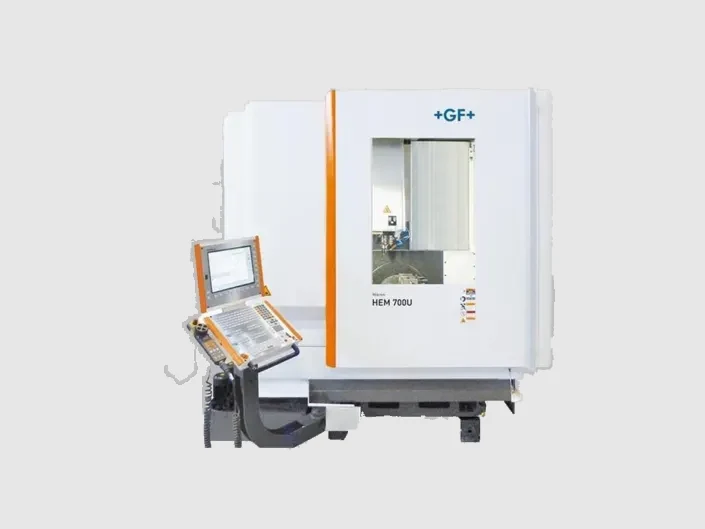

Mikron
HEM 5-axis
5-axis machining center
- Swivel B / C
- −30° / +120° · 360°

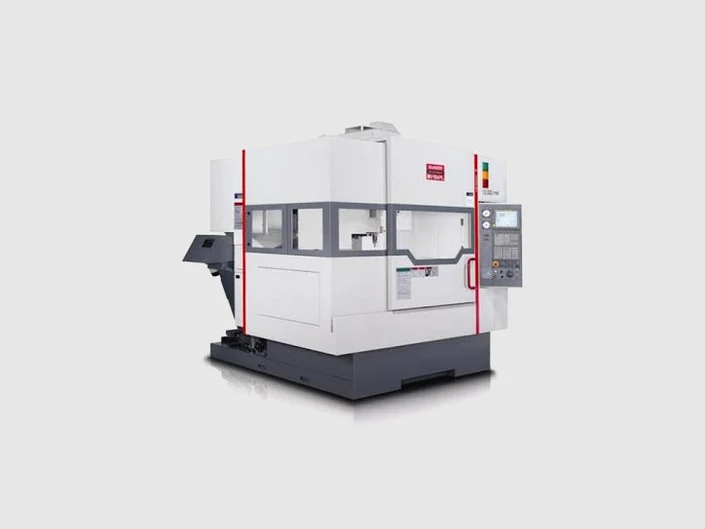

Quaser
MV 154 PL
Vertical machining center
- Travel X / Y / Z
- 700 × 530 × 560 mm
- Spindle
- 12,000 rpm

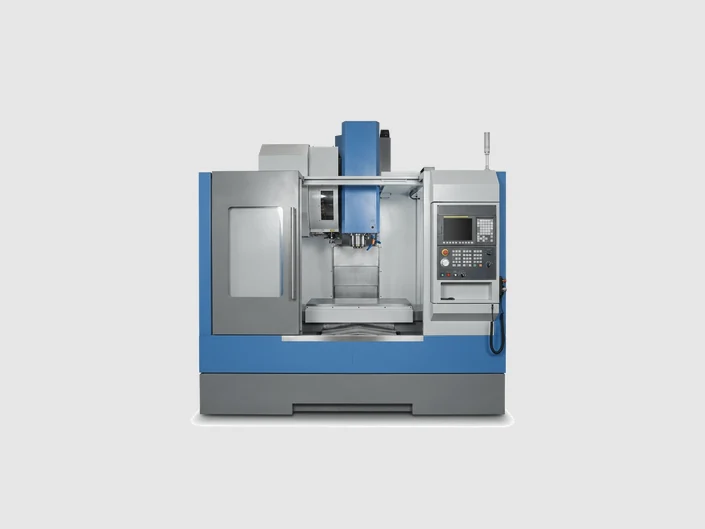

Doosan
Mynx 530
Vertical machining center
- Travel X / Y / Z
- 813 × 510 × 510 mm
- Table
- 1,000 × 500 mm · 800 kg
- Spindle
- 8,000 rpm · 11 kW
- Tool positions
- 24
- Control
- Fanuc 0i-M
CNC turning
14 machines

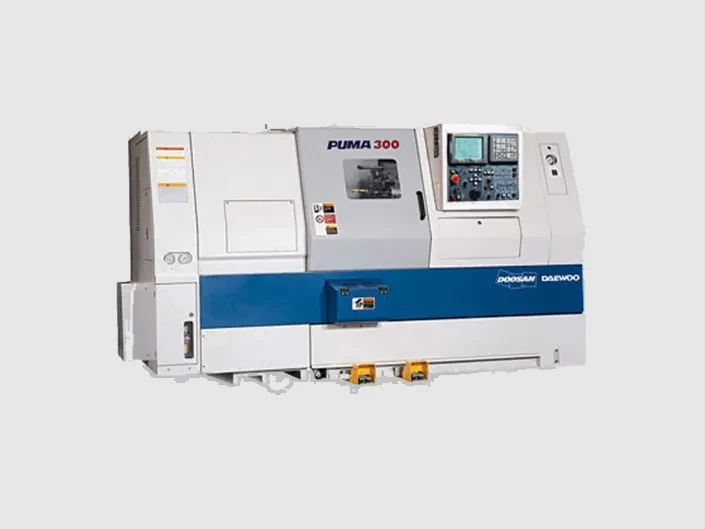

Doosan
Puma 300
CNC lathe
- Turning Ø × length
- Ø340 × 510 mm
- Spindle
- 3,500 rpm · 18.5 kW
- Tool positions
- 12

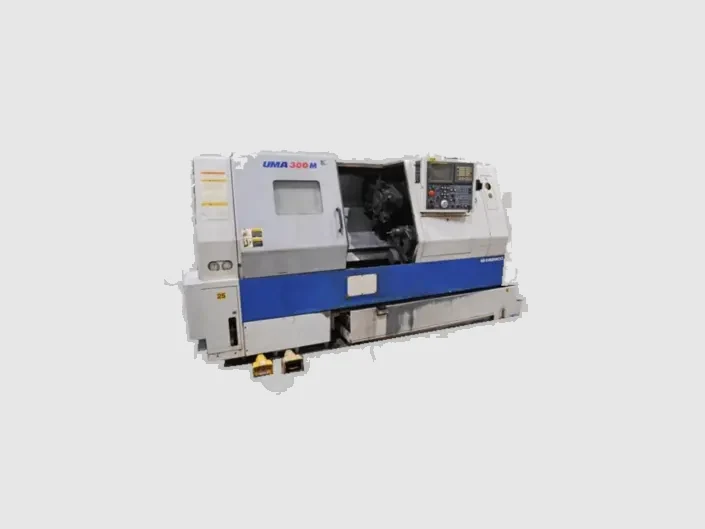

Doosan
Puma 300M
Turning center with live tooling
- Turning Ø × length
- Ø400 × 580 mm
- Spindle
- 3,000 rpm · 18.5 kW
- Bar capacity
- 66 mm

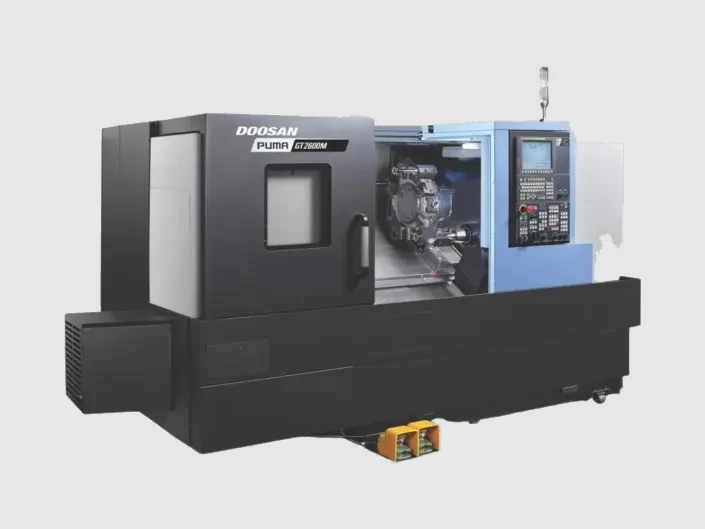

Doosan
Puma 2600 GT
CNC lathe
- Turning Ø × length
- Ø375 × 735 mm
- Spindle
- 3,500 rpm · 18.5 kW
- Bar capacity
- 80 mm

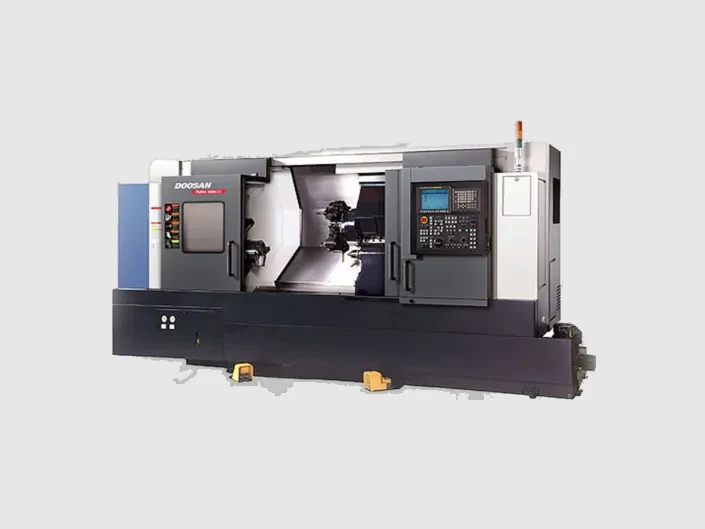

Doosan
Puma 2600 LMS
Turning center with live tooling
- Turning Ø × length
- Ø375 × 795 mm
- Spindle
- 3,500 rpm · 18.5 kW
- Bar capacity
- 80 mm
- Live tools
- 5,000 rpm · 5.5 kW

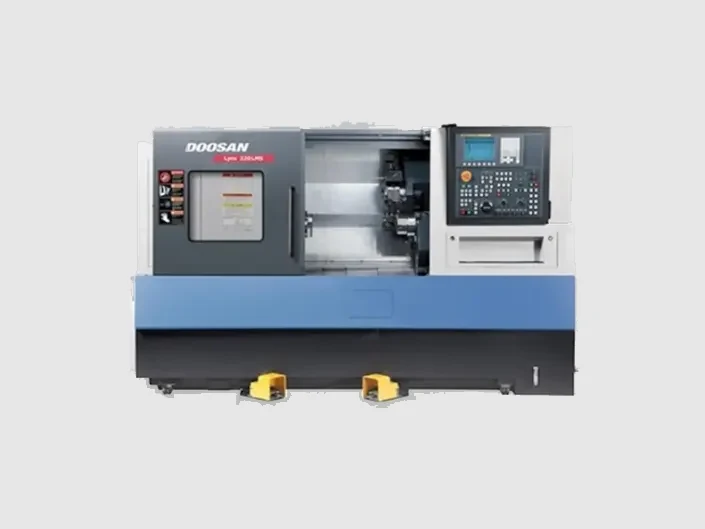

Doosan
Lynx 220LY
Turning center with Y-axis
- Turning Ø × length
- Ø300 × 510 mm
- Spindle
- 4,500 rpm · 15 kW
- Bar capacity
- 66 mm

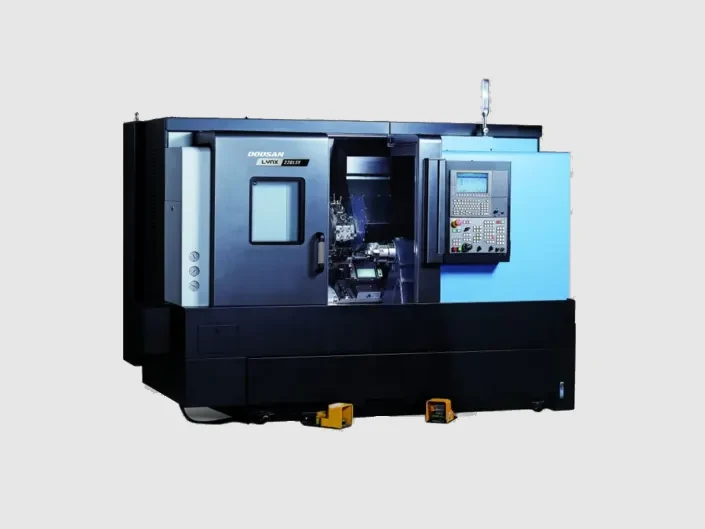

Doosan
Lynx 220 LSY
Turning center with Y-axis
- Turning Ø × length
- Ø300 × 550 mm
- Spindle
- 6,000 rpm · 15 kW
- Bar capacity
- 65 mm
- Control
- Fanuc 0i-TF

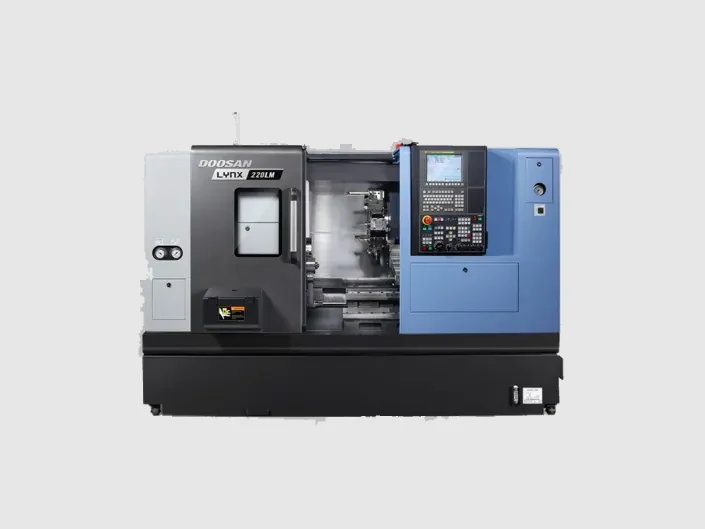

Doosan
Lynx LM 220
Turning center with live tooling
- Turning Ø × length
- Ø350 × 510 mm
- Spindle
- 4,000 rpm · 15 kW
- Bar capacity
- 66 mm

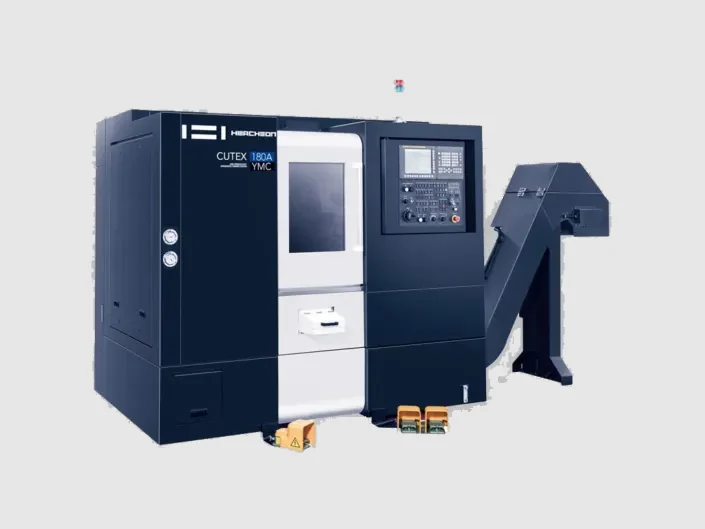

Hwacheon
Cutex 180LB YSMC
Turning center with Y-axis
- Turning Ø × length
- Ø300 × 300 mm
- Spindle
- 4,500 rpm · 15 kW
- Bar capacity
- 66 mm
- Control
- Fanuc 0i-TF

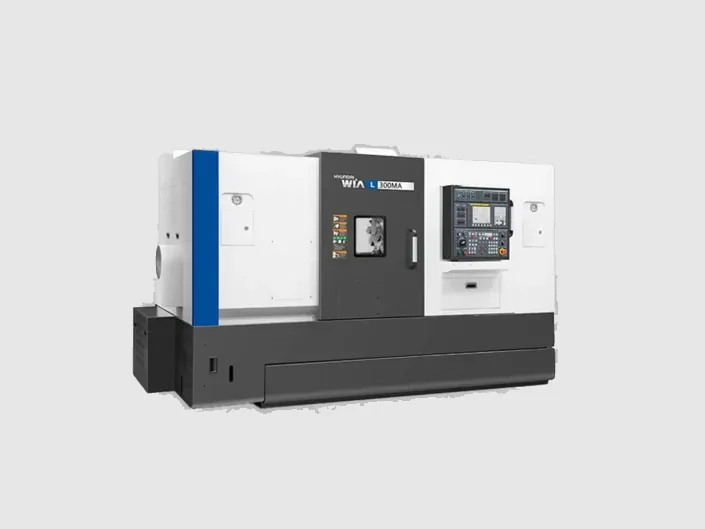

Hyundai WIA
L300 MSC
Turning center with sub-spindle
- Turning Ø × length
- Ø750 × 750 mm
- Spindle
- 3,000 rpm · 26 kW
- Sub-spindle
- 4,000 rpm · 11 kW
- Control
- Fanuc 0i

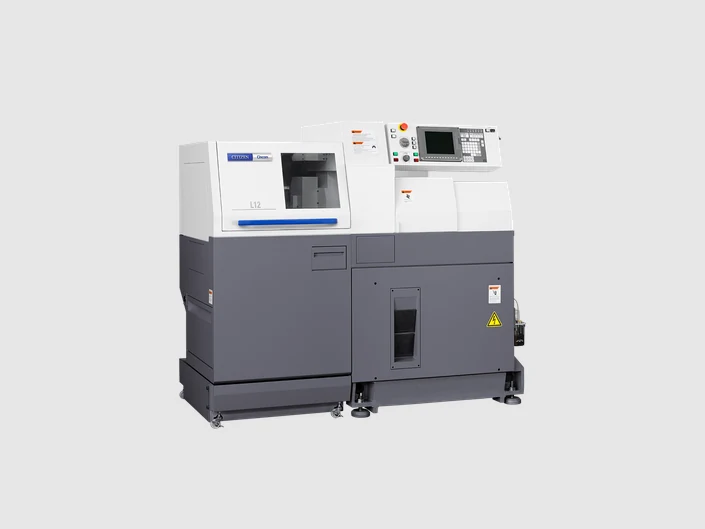

Citizen
Cincom L12-VII
Swiss-type CNC lathe
- Turning Ø × length
- Ø12 × 135 mm
- Spindle
- 15,000 rpm · 2.2/3.7 kW
- Tool positions
- 27

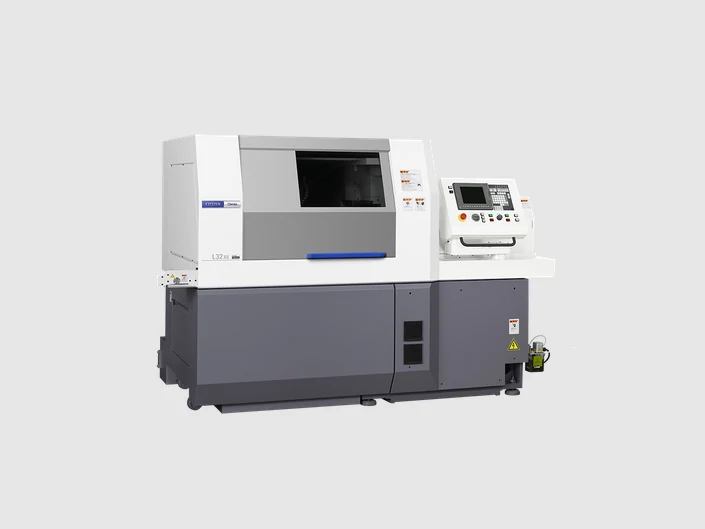

Citizen
Cincom L32-X
Swiss-type CNC lathe
- Turning Ø × length
- Ø32 × 320 mm
- Spindle
- 8,000 rpm · 3.7/7.5 kW
- Tool positions
- 44
Citizen
Cincom L32-VIII 2×
Swiss-type CNC lathe
- Turning Ø × length
- Ø32 × 320 mm
- Spindle
- 8,000 rpm · 3.7/7.5 kW
- Tool positions
- 30

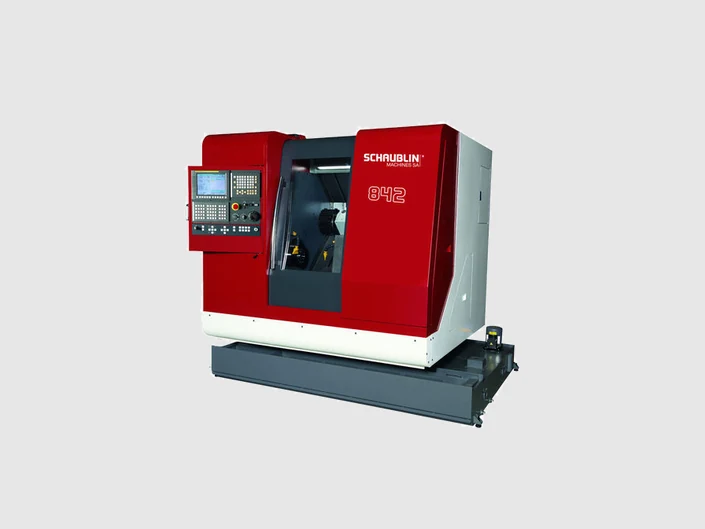

Schaublin
842 MI
CNC turning center
- Turning Ø × length
- Ø260–350 × 398 mm
- Spindle
- 6,000 rpm · 24/30 kW
- Tool positions
- 12
